Beware EditText on API 21

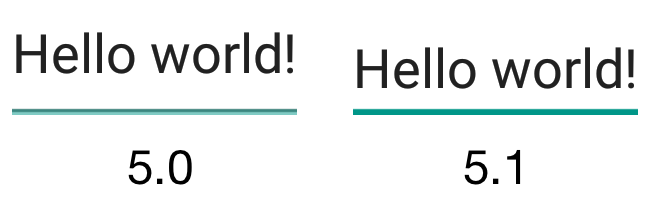

Check out these two EditTexts
. One is on an API 21 device, the other on an API 22 device.

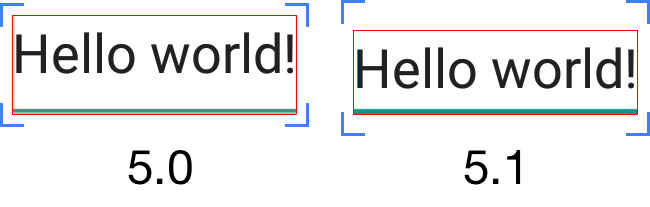

See the difference? It's even more pronounced with "show layout bounds" enabled:
The height and vertical alignment of the EditTexts
are different! This was caused by a change in the background of EditText
between v21 and v22 (diff).
This change can cause sadness if your EditText
is vertically aligned with other Views

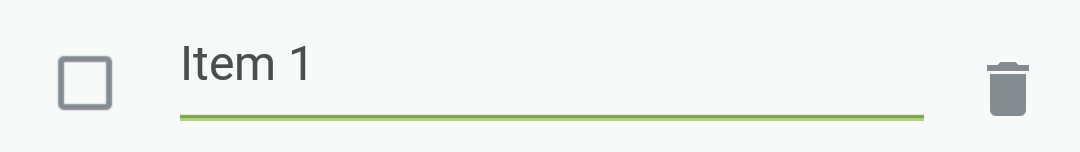

, such as this case in Trello:
The text should be aligned with the icons, yet clearly it's not. The screenshot above is from 5.0; any other version of Android looks perfectly fine.
This problem crops up even if you're using AppCompat. AppCompat usually defers to the system material styles on v21+, which is the source of the problem.
Solution
Both solutions I've come up with use resource qualifiers to handle API 21 in a special manner.
One possibility is to import your own EditText
background assets for API 21. Unless your app is filled with vertically-aligned EditTexts
this seems like more effort than it's worth, since precision-targeting the background of EditTexts
for just a single API version is tricky.
The hackier (but easier) solution is to just define different margins or paddings based on the API level. For example, I found that they're ~6dp off, so you end up with resources like this:
<!-- values/dimens.xml -->
<dimen name="edit_text_spacing">6dp</dimen>
<!-- values-v21/dimens.xml -->
<dimen name="edit_text_spacing">0dp</dimen>
<!-- values-v22/dimens.xml -->
<dimen name="edit_text_spacing">6dp</dimen>
I'd be the first to admit it's ugly, but if there's only a handful of places you're fixing the problem, it's not so bad.
